PRODUCT INFORMATION

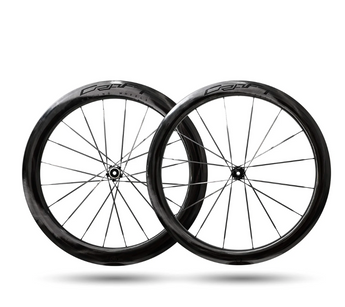

The Craft Racing Wheels (CRW) Works CS series is the latest flagship wheelsets from CRW. This new generation features a stark improvement in pedaling stiffness. This has been achieved with the implementation of carbon spokes and the redesign of the hub and spokes. Weight has been further reduced to 1,290grams (+/-2%) with the new hub and spoke design.
The rims are manufactured from Japanese Toray T700 and T800 carbon fibre. Not only are the rim height stagerred (50/60mm), the rim widths between the front and rear wheels are different too. The front rim is designed to bow out to 34mm at its widest point to reduce crosswind interference. The CRW Works CS5060 delivers well-balanced performance between aerodynamics and crosswind stability.
SPECIFICATIONS
- Max System Weight: 100kg (Including weight of rider, bags and bicycle, excluding wheels.)
- Weight (+/-2%, excluding included rotor lock rings)
- Front: 570grams
- Rear: 720grams
- Rim Height and Width
- Front: 50mm height, 25mm inner width, 32/34mm outer width (only install tyre wider than 26c)
- Rear: 60mm height, 21mm inner width, 28/29mm outer width
- Recommended Tyre Width: 25-32c
- Max Tyre Pressure: 120PSI
- Hubs
- Front: 100x12mm, 16 holes, centerlock rotors
- Rear: 142x12mm, 20 holes, centerlock rotors, 36T star ratchet (Shimano HG or SRAM XDR)
- Bearings
- Front: 2x 6902
- Rear: 2x 6902 & 2x 6802
