Nextie Supreme AM/ Enduro Carbon Rim 2024

All Nextie Carbon on pre-order basis. Production estimated at 3 weeks and ready to ship in 4 weeks

Price stated as 1 rim

• Name: Omega 36

• Code: NXT29VM36

• Rim Type: Mountain Bike (Clincher, Hookless)

• Materials: Carbon Fiber (Mix)

• Tubeless Compatible: Yes

• Drillings: 24, 28, 32

• Edition: Supreme Edition

• ASTM Classification: Condition 4

• Warranty: 5 Years

• Release Date: July 2024

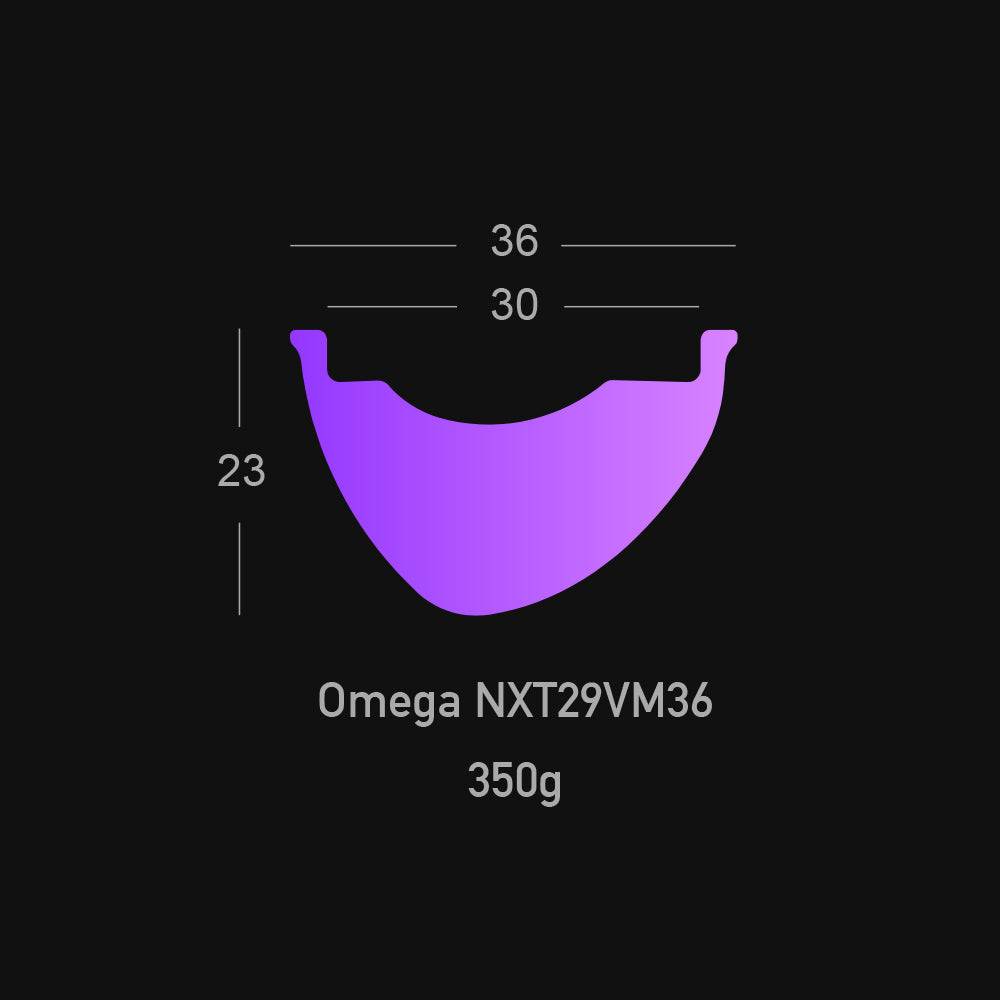

Specification

• Size: 29"

• BSD (Bead Seated Diameter): 622mm

• ERD (Effective Rim Diameter): 594mm

• External Width: 36mm

• Internal Width: 30mm

• Rim Height: 23mm

• Spoke Bed Offset: 3.0mm

• Weight: 350g AM / 390g Enduro

• Valve Hole Diameter: 6.5mm (Presta)

• Spoke Holes Diameter: 4.5mm

• Assembly Hole Diameter: 7.5mm

• Rim Lip Thickness: 3.0mm

• Drain Holes: Yes

• Strength: 130J / 140J (Pointed Hammer, 25psi)

Recommendation

• Tire Size: 2.0" ~ 2.75"

• Tire Pressure: 19 ~ 37psi

• Spoke Tension: 100 ~ 130kgf

• Max System Weight: 143Kg (AM) / 141Kg (Enduro)

Appearance

• Weave: UD

• Finish: Free Coating, Matte, Glossy

Application

• Cross Country, Marathon, Endurance Cross Country, Trail, All Mountain, Enduro

• This rim is designed for tubeless or tubeless-ready tires only. Inner tubes are ok, but the tire must have tubeless beads for safe retention.
