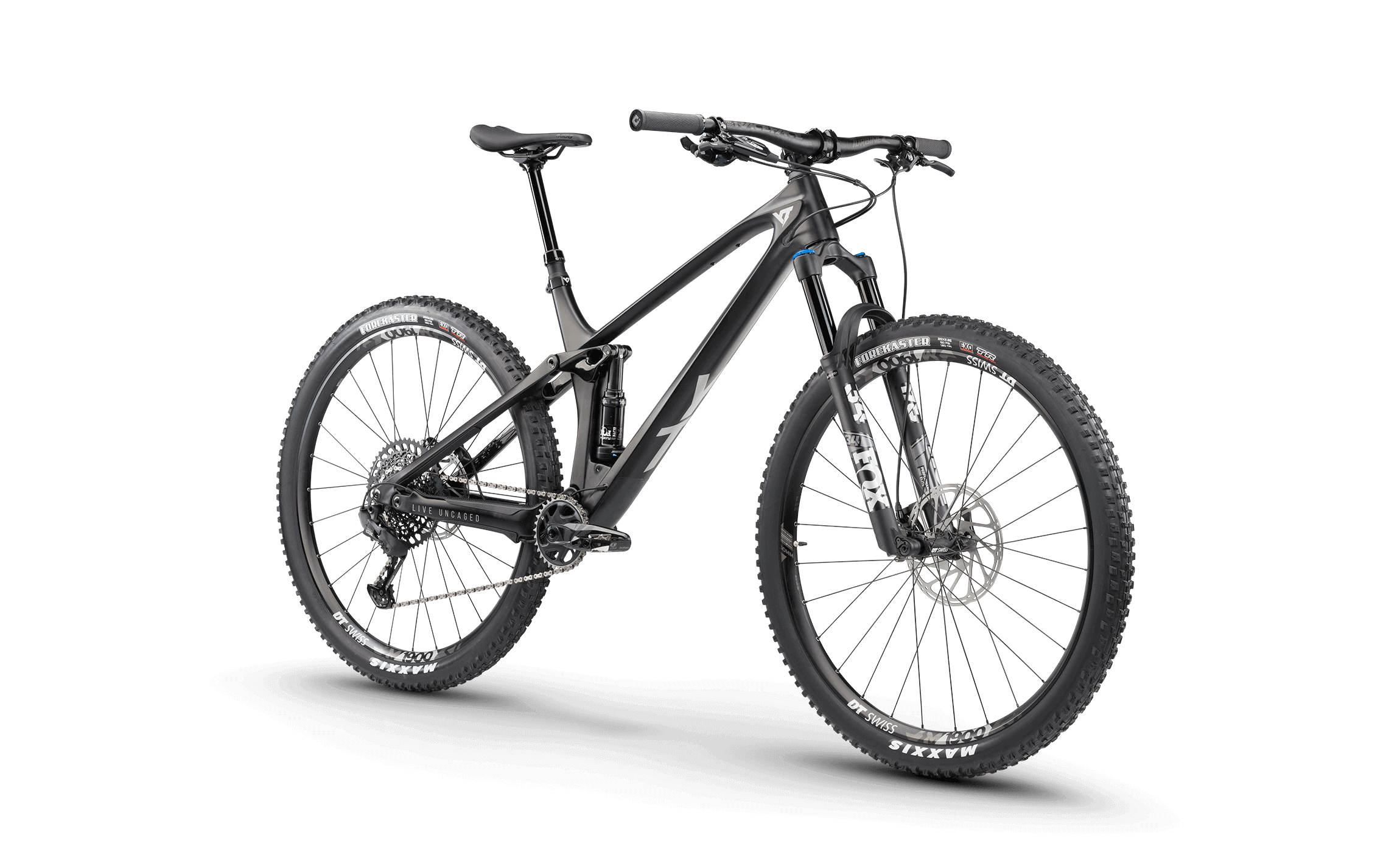

YT_Izzo_Core3_black_magic

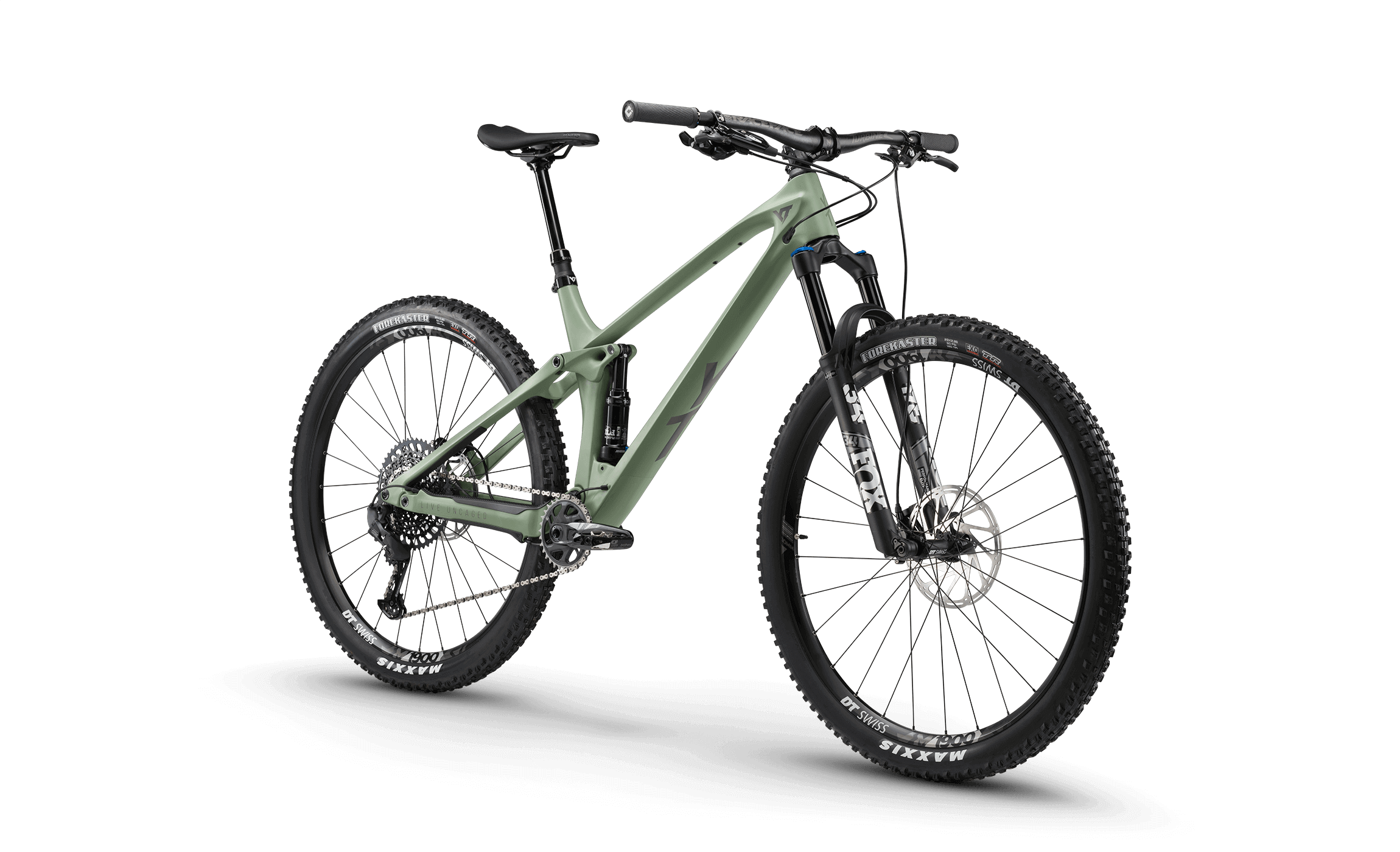

YT_Izzo_Core3_Assault_Green

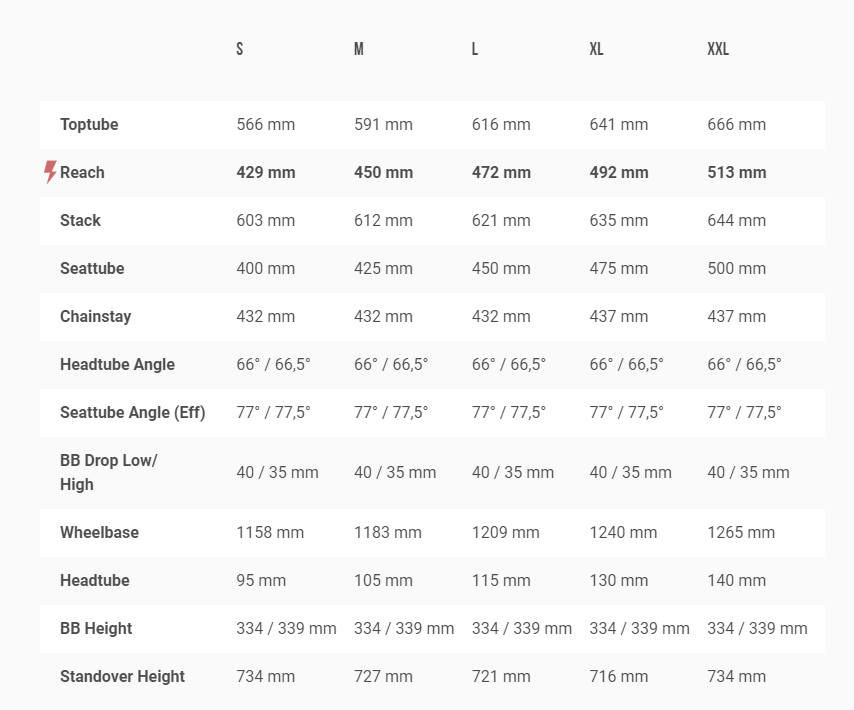

YT_izzo_bike_core3_measurement

YT

YT Izzo Core 3

$6,999.00 SGD $6,400.00 SGD Save 9% Sold out
Size: Medium
Colour: Black Magic
Want to pin it? Then you want the IZZO CORE 3! Carefully selected premium, durable components on high-end carbon frames, with fully adjustable suspension elements that deliver exactly the level of performance that ambitious riders are looking for. These outstanding builds give you everything you need to conquer any challenge on the mountain – unlimited fun on your trails, guaranteed.
FRAME:
-FRAME SIZE: M
-COLOR:ASSAULT GREEN, BLACK MAGIC

WHEELS
-WHEELS:DT SWISS M 1900 SPLINE
Aluminum Rims 29“ | Inner Width 30 mm | Front Hub 110 x 15 mm | Rear Hub 148 x 12 mm | Freehub XD


-TIRES:MAXXIS FORECASTER
Tire Size 29“ x 2.35 | EXO Casing | DUAL Compound | Tubeless Ready


SUSPENSION:
-FORK:FOX 34 FLOAT PERFORMANCE ELITE
29“ | 130 mm Travel | 110 x 15 mm Axle | 44 mm OffsetGrip2 Damper, Adjustable High- and Low-Speed Compression and Rebound, Air Pressure


-SHOCK:FOX FLOAT DPS PERFORMANCE ELITE
Shock Length: 210 mm | Shock Stroke: 55 mm ≙ 130 mm Travel | 3-pos lever, Low-Speed Compression, Low-Speed Rebound, Air Pressure


DRIVETRAIN:
-CRANKSET:SRAM GX EAGLE
Crank Arm Length 170 mm (S), 175 mm (M-XXL) | 32T | DUB


-CASSETTE:SRAM XG 1275 EAGLE

10-52T | 12-speed



-REAR DERAILLEUR:
SRAM GX EAGLE
12-fach

-SHIFTER REAR:SRAM GX EAGLE
12-fach


COMPONENTS:
-HEADSET:ACROS AZX
586 Block Lock (S-M), 576 (L-XXL) I 2 Spacer 5 mm

-STEM:RACE FACE TURBINE R 35
Length 50 mm (S-M), 60 mm (L-XXL) | 35 mm Clamp | Rise 0°

-HANDLEBAR:RACE FACE TURBINE R 35
Width 780 mm | Rise 20 mm | 8° Back Sweep | 5° Up Sweep | 7075 AL

-GRIPS:ODI ELITE MOTION V2.1
Lock On

-BRAKES:SRAM G2 R
Rotor CENTERLINE Ø front 200 mm / rear 180 mm Adjustable Reach

-SEATPOST:YT POSTMAN
31.6 mm | 100 mm Drop (Frame Size S) | 125 mm Drop (Frame Size M) | 150 mm Drop (Frame Size L) | 170 mm Drop (Frame Size XL-XXL) | MMX-Remote

-SADDLE:SDG BEL AIR 3.0
YT Custom | Width 140 mm I Lux-Alloy Rail


WEIGHT:
-WEIGHT:13,30 KG / 29,32 LB
Average weight for smallest size available, without tubes, pedals, and bottle.
