PRODUCT INFORMATION
| Brand | Polygon |
|---|---|
| Genre | MTB |

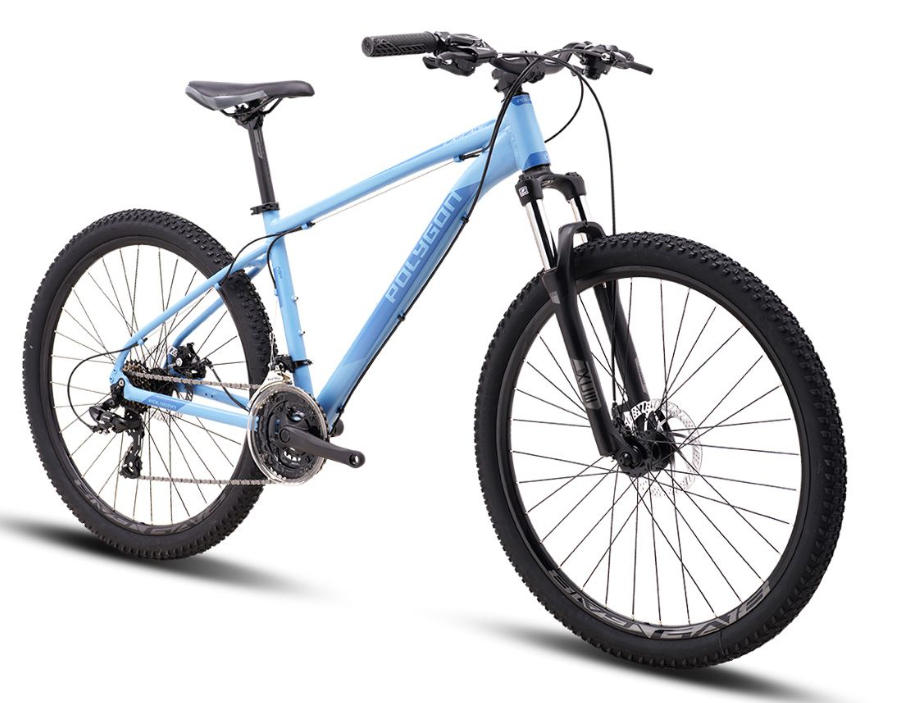

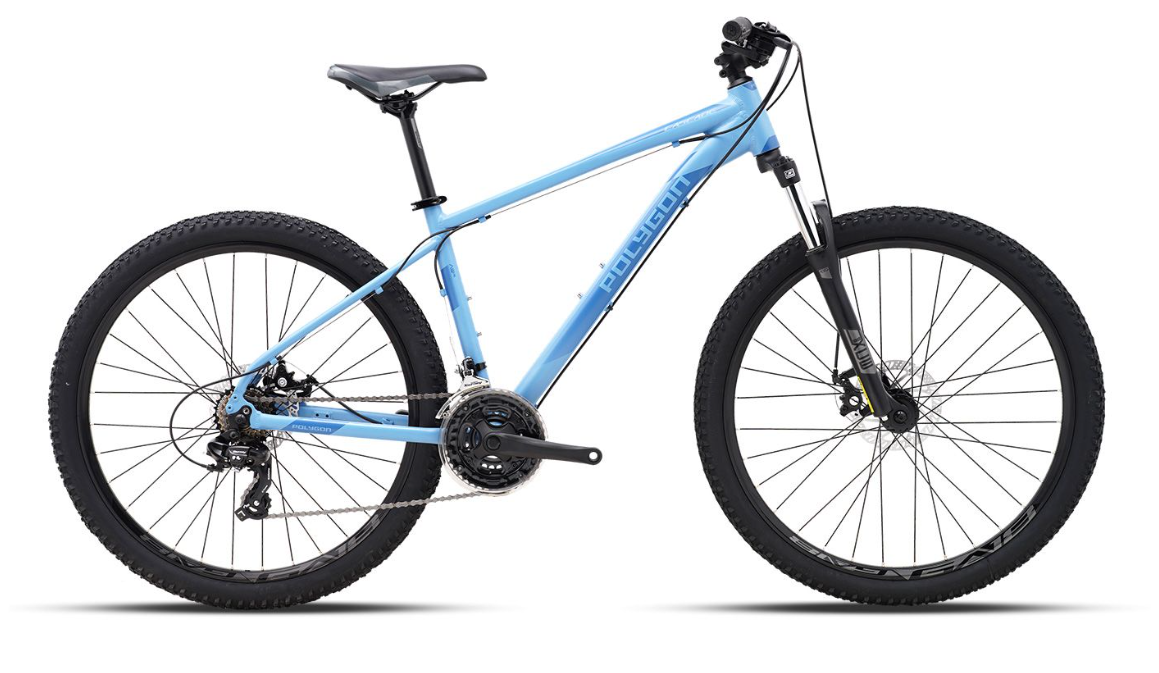

| What's in the box | 1 x Polygon Cascade 3 Mountain Bike |
| Technology | UPRIGHT GEOMETRY, LIGHT YET DURABLE ALLOY FRAME, IMPROVED CHAIN CONTROL, PRELOAD ADJUSTER FORK |
| Frame | AL6 XC SPORT FRAME |
| Fork | SUNTOUR XCE28 100mm TRAVEL, STRAIGHT 1-1/8", HUB SPACING QRx100mm L: 112mm |
| Head Set | ZERO STACK (ZS) THREADLESS, ZS 44/28.6 | 44/30 |
| Handle Stem | ENTITY ALLOY, E: 45MM, B: 31.8MM, R/D: 0 |
| Handlebar | STEEL HANDLEBAR, W: 680MM, B: 31.8MM, R/D: 40MM, BEND : 8degree |
| Front Derailleur | SHIMANO FD-TY300 6/7-SPEED DOWN-SWING TOP-PULL |
| Rear Derailleur | SHIMANO RD-TY300 6/7-SPEED DIRECT ATTACH |
| Shifter | SHIMANO ST-EF41, 3x7 SPEED TRIGGER |
| Bottom Bracket | CARTRIDGE BEARING W/ CAGED BEARING & 119mm SQUARE AXLE |
| Crank Set | STEEL CRANK 42x34x24T, MAX CHAIN RING 42T, CRANK ARM 170mm |
| Cassette | SHIMANO MF-TZ500 7-SPEED 14-28T FREEWHEEL |
| Chain | KMC HV-500 |
| Pedal | PP CAGE W/ REFLECTOR |
| Brake | MECHANICAL DISC BRAKE, TEKTRO MD-M280 |
| Brake Lever | SHIMANO ST-EF41 |
| Brake Rotor | TEKTRO TR160-24 160mm 6-BOLTS |
| Wheel Set | ALLOY DOUBLE WALL AV H: 20 584x20 32H FOR TIRE 584-28/62 DISC |
| Front Hub | ALLOY DISC BRAKE QR9x100mm 32H 6B |
| Rear Hub | ALLOY DISC BRAKE QR9x135mm 32H 6B FOR FREEWHEEL |
| Spokes & Nipples | STEEL 14G NDS:270 & DS:272 W/ UCP BRASS (front), STEEL 14G NDS:272 & DS:270 W/ UCP BRASS (rear) |
| Tire | PERFORMANCE TIRE 27.5"x2.1" 584x54 |
| Saddle | MTB SADDLE, STEEL ø7mm |
| Seat Post | ENTITY, 27.2x350mm |
| Seat Clamp | 31.8mm W/ QR |
| Extras | KICK STAND, DROPOUT 733072 |
| Speed | 3x7 Speed |
| Wheel Size | 27.5" |
| Weight | 18.8 kg (Size M) |
