PRODUCT INFORMATION

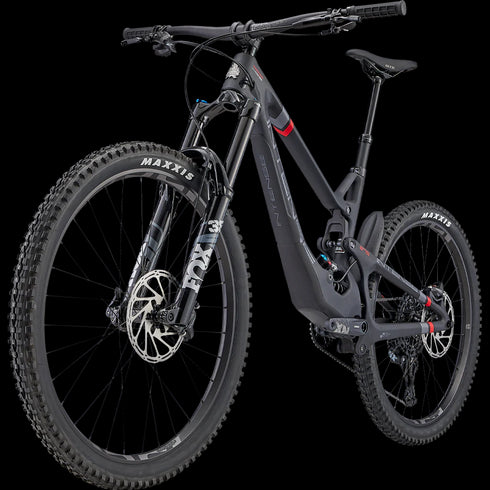

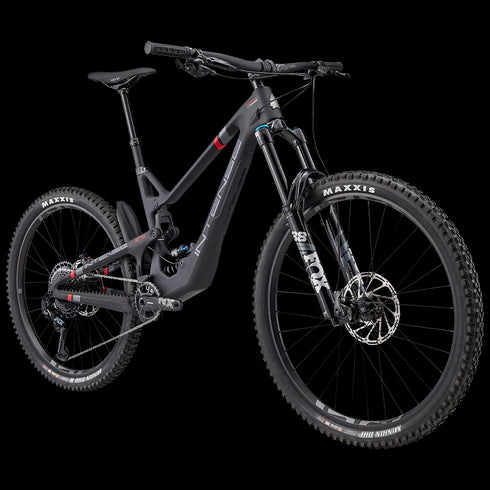

An Enduro bike needs to do two things: eat-up mountainous terrain on the downhills, and climb back up to do it all again. With our new Tracer, we believe we have made a bike that can do just that.
| BUILD | EXPERT | |
| FRAME |
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated CHAD Storage system with the ‘tube bag’ included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing).
|
|
| FORK |
FOX Performance 38 Float 170mm with GRIP Damper quick release front axle (boost 110 hub spacing) 44mm offset
|
|
| SHOCK |
FOX Performance elite DHX2 coil, rebound adjustments, 2 position climb switch, Shock size/Stroke: 205mm x 65mm upper mounting hardware Trunnion Lower Mounting Hardware: 8mm x 20mm.
|
|
| COIL/SPRING |
350 lbs (S Size for 54 - 64 kg rider weight) / 450 lbs (M Size for 64 - 73 kg rider weight) / 500 lbs (L Size for 73 - 80 kg rider weight) / 550 lbs (XL Size for 80 - 84 kgs rider weight).
|
|
| HEADSET |
INTENSE Top ZS49/28.6mm, Bottom ZS56/40
|
|
| STEM |
e*Thirteen 35mm stem, 40mm length
|
|
| HANDLEBARS |
e*Thirteen 35mm bar with 20mm rise, 800mm width
|
|
| GRIPS |
INTENSE Logo Lock-on
|
|
| BRAKESET |
SRAM Code R 4-piston - Front Rotor 200mm 6-bolt 1.8mm / Rear Rotor 200mm 6-bolt 1.8mm
|
|
| SHIFTER |
SRAM NX Eagle 12SP
|
|
| DERAILLEUR |
SRAM NX Eagle 12SP
|
|
| CRANKS |
SRAM NX Eagle 12SP / DUB / 32t / 170MM / Boost / 52mm Chainline
|
|
| CHAINGUIDE |
e*Thirteen Vario top guide
|
|
| BOTTOM BRACKET |
SRAM DUB Threaded
|
|
| CASSETTE |
SRAM PG 1230 Eagle 12SP / 11-50t
|
|
| CHAIN |
SRAM NX Eagle 12SP 118 links
|
|
| SPOKES |
DT Swiss 2.0 Straight Gauge
|
|
| WHEELSET |
e*Thirteen LG1 Enduro 30MM Alloy Rim / INTENSE alloy hub/boost
|
|
| HUBS |
Front - INTENSE alloy hub 32h 6-bolt rotor 110mmx15mm boost front / Rear - INTENSE alloy hub 32h 6-bolt rotor HG driver body 148mmx12mm boost
|
|
| SPOKES |
DT Swiss 2.0 Straight Gauge
|
|
| TIRES |
Front: MAXXIS Minion DHF Maxx Terra 3C EXO+29"x250" / Rear: MAXXIS Minion DHR II Maxx Terra 3C EXO+27.5"x2.40"
|
|
| DROPPER POST |
INTENSE Recon Dropper 31.6mm, length 125mm SM / 150mm MD / 170mm Lg / 200mm XL (Frame Size Specific)
|
|
| SADDLE |
WTB Silverado Sport w/steel rails
|
